The Glitch
A heating professional is asked to retrofit a biomass boiler to an existing distribution system consisting of older cast-iron radiators, iron piping and an oil-fired boiler. The system needs to draw heat from a thermal storage tank heated by the biomass boiler, as well as an existing oil-fired boiler.
The original heating distribution system was designed to use 180° F supply water on a design day, but will now be retrofitted by outdoor reset control. This will allow the distribution system to operate at supply water temperatures as low as 100° on mild days.
A portion of the proposed piping layout is shown above. Can you identify several details that could be improved?
The Fix
Although the piping shown in the Glitch drawing could work, it uses more hardware than necessary and doesn’t place that hardware in optimal locations.
The objective of the system is to accept heat from the thermal storage tank and/or the auxiliary boiler, and send that heat to the distribution system. Although the primary/secondary arrangement could do this, it is not necessary. The primary loop and its associated circulator could be eliminated as shown in the Fix drawing above. This would reduce installation cost as well as operating cost over the life of the system.
Each heat source (e.g., the thermal storage tank and the existing oil-fired boiler) connect to the distribution system using a pair of closely-spaced tees. This provides adequate hydraulic separation of all circulators.
The Fix drawing is shown with the thermal storage tank not contributing heat to the system. Perhaps the tank has been discharged to a low temperature where it can no longer contribute heat to the system. Or perhaps the pellet boiler is off-line for maintenance. In either case, the water temperature returning from the distribution system could be quite low (based on the use of outdoor reset control).
Although the oil-fired boiler in the original system did not operate with sustained flue gas condensation, that possibility now exists. To prevent corrosion damage to the oil-fired boiler and its flue, a high flow-capacity three-way thermostatic mixing valve has been added to the oil-fired boiler. It will ensure that the water temperature entering this boiler is at or above 130° whenever possible.
Other changes include moving the closely spaced tees that connect the thermal storage tank to the system “upstream” of those that connect the oil-fired boiler to the system. This allows the possibility of lower temperature heat being supplied from storage, while the oil-fired boiler operates to boost the water temperature as necessary.
If simultaneous operation of the thermal storage tank circulator and oil-fired boiler is allowed, the designer should also ensure that heat generated by the oil-fired boiler cannot be inadvertently transferred to the thermal storage tank. This is easily done by using a differential temperature controller to monitor the difference between the water temperature returning from the distribution system and the water temperature available from the top of the thermal storage tank.
The latter is only allowed to contribute heat to the system if the tank temperature remains a few degrees above the return temperature from the distribution system.
Other modifications include:
1. Purging valves have been added to each secondary circuit.
2. The dirt separator has been moved to a location upstream of the heat sources. In this position, it is more likely to intercept dirt returning from the old distribution system before it is carried into either heat source or the other components in the reconfigured distribution system.
The original title of this article was “Overlooped” in the January 2016 edition of Plumbing & Mechanical.
Download a pdf of the January 2016 The Glitch and the Fix.
Retrofit with biomass boiler
The Glitch and The Fix, January 2016
![The Glitch and The Fix, January 2016 -- Glitch drawing](https://www.pmmag.com/ext/resources/radianthydronics/RH/2016/January/RH0116_Glitch-drawing.jpg?t=1452619509&width=1080)

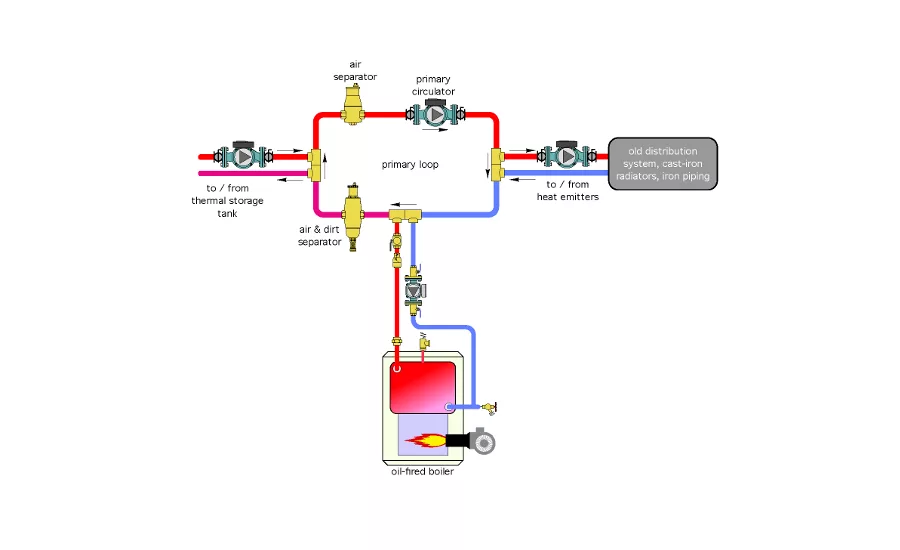

Glitch drawing: A biomass boiler is to be retrofitted to an existing distribution system consisting of older cast-iron radiators, iron piping and an oil-fired boiler. The system needs to draw heat from a thermal storage tank heated by the biomass boiler, as well as an existing oil-fired boiler. Graphics credit: John Siegenthaler, P.E.
![The Glitch and The Fix, January 2016 -- Fix drawing](https://www.pmmag.com/ext/resources/radianthydronics/RH/2016/January/RH0116_Fix-drawing.jpg?t=1452619654&width=1080)

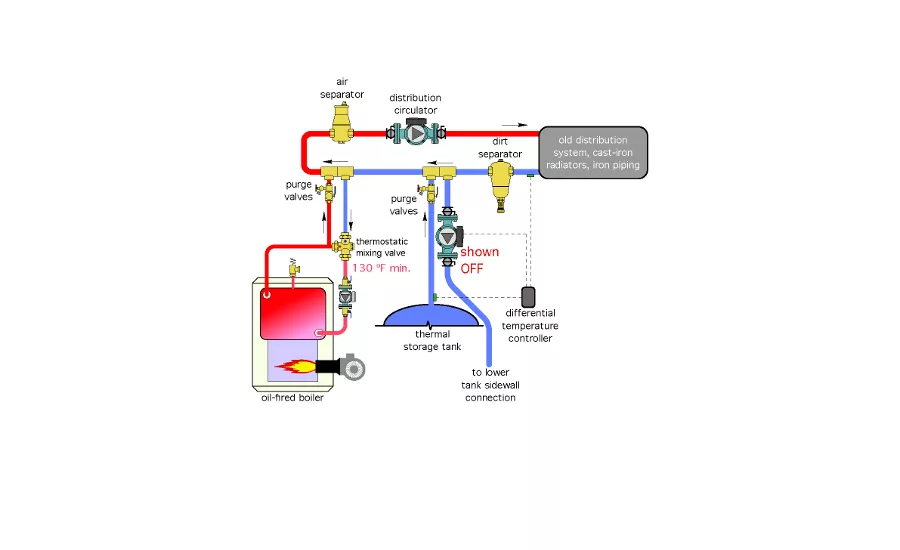

Fix drawing: The objective of the system is to accept heat from the thermal storage tank and/or the auxiliary boiler, and send that heat to the distribution system. The primary loop and its associated circulator could be eliminated as shown in the Fix drawing above. This would reduce installation cost as well as operating cost over the life of the system. Graphics credit: John Siegenthaler, P.E.
